对规范EDA测试用例源文件的思考

在EDA行业，对于测试用例而言，每个用例都有自己的数据来源，在公司内部，并不是所有研发/测试都会重复使用已存在的资源，每次遇到这种情况，研发/测试首选的是建造一个新的文件夹，并在测试用例中指向这一部分的文件。

Git自然是首选，问题是当这一部分文件变得相当庞大之后，Git或许并不是最高效的手段（存在大量流程），同时对文件的更新也无法及时的体现在对应的文件中（有一定延迟）

重新思考文件的管理规则

首先想到的是重新建造一套规则，满足以下几个条件

• 利用shell脚本重新构造一个命令，对测试目录具有直接管辖权

• 除开shell脚本，其他所有人员一律不能对测试目录进行操作

• shell脚本具有完整的对测试目录添加，删除，锁定功能

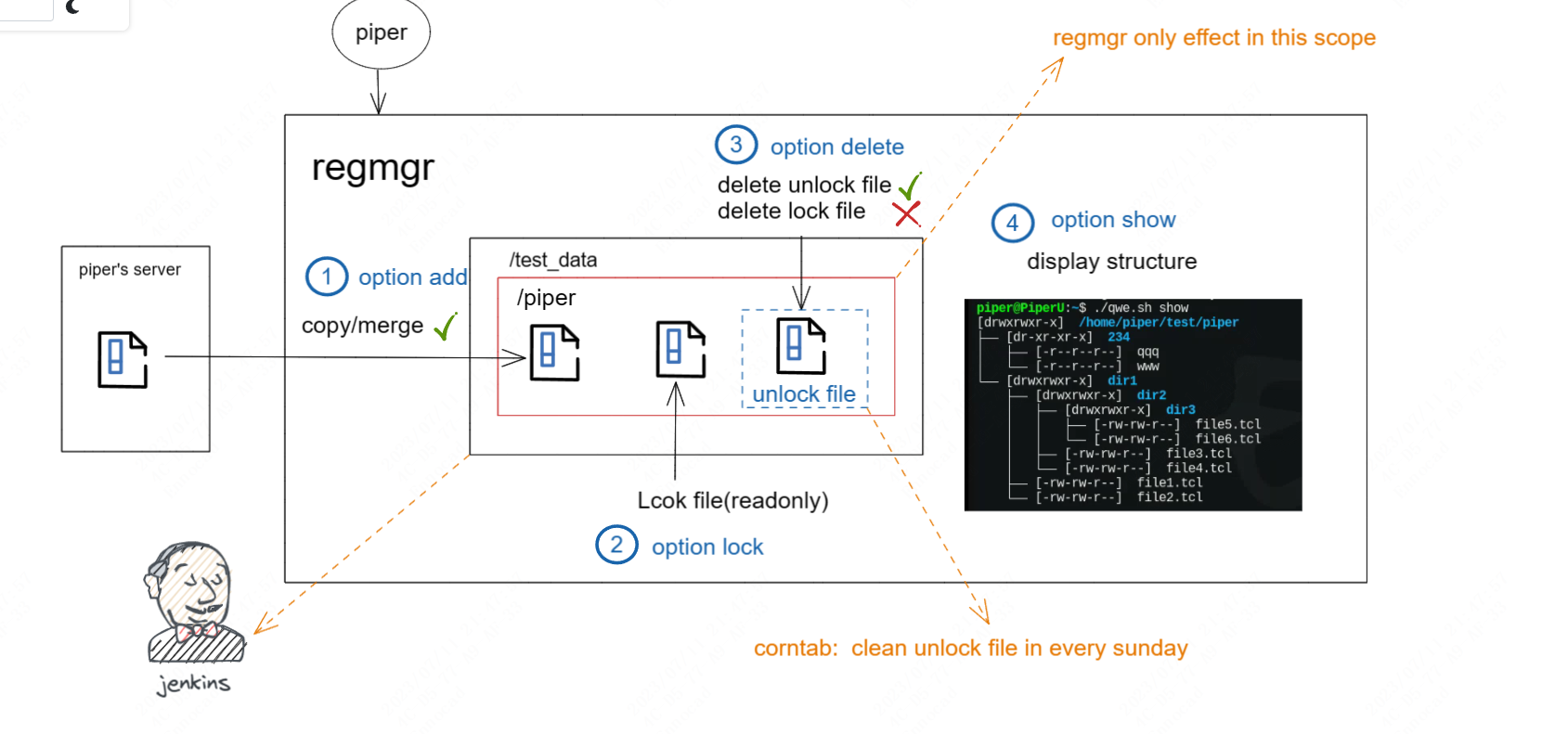

基于以上的想法，构建了一套大概框架如下

代码时间

根据前一小节的设计思想，直接冲shell脚本。

编辑器抽风，格式乱的，理解概念就行咯~

#!/bin/bash



option=$1                       # 选项（add/delete/lock/show）

source_path=$2                  # 源路径

relative_d_path=$3    # 相对于 user_destination 的目标路径（可选）

destination="/home/piper/test"  # 根目录



# 获取当前用户名

username=$(whoami)

if [ -z "$option" ]; then

  echo "Usage: $0 <option> <source_path> [<relative_path>]"

  echo "Options : "

  echo "  <add>    : copy <source_path> to '$destination/$username'"

  echo "  <delete> : delete <source_path> from '$destination/$username'"

  echo "  <lock>   : lock <source_path> in '$destination/$username'"

  echo "  <show>   : show directory structure in '$destination/$username/[<source_path>]'"

  exit 1

fi

if [ "$option" != "show" ]; then

  if [ -z "$source_path" ]; then

    echo -e "\033[31mError\033[0m: option '$option' requires specified path/file"

    exit 1

  fi

fi

# 在目标路径中创建基于用户名的文件夹

user_destination="$destination/$username"

mkdir -p "$user_destination"



if [ -z "$relative_d_path" ]; then

  relative_path=$(basename "$source_path")

fi

full_source_path="$source_path"

full_destination_path="$user_destination/$relative_path"

#检查输入参数是否存在  '..'

checkpath="$full_destination_path/$full_source_path"

if [[ $checkpath =~ (^|\/)\.\.|\.(\/|$)|/^\.\.$ ]]; then

  echo -e "\033[31mError\033[0m: File path not support '..' symbol"

  exit 1

fi

 echo full_source_path $full_source_path

 echo full_destination_path $full_destination_path

if [ "$option" == "show" ]; then

  if [ -z "$source_path" ]; then

    source_path="$user_destination"

  else

    source_path="$user_destination/$source_path"

  fi


  if [ ! -e "$source_path" ]; then

    echo -e "\033[31mError\033[0m: Source path does not exist."

    exit 1

  fi

  tree -p "$source_path"       # 使用tree命令显示目标路径的结构



elif [ "$option" == "add" ]; then

  if [ ! -e "$full_source_path" ]; then

    echo -e "\033[31mError\033[0m: Source does not exist."

    exit 1

  fi

  if [ -d "$full_source_path" ]; then

    if [ -e "$full_destination_path" ]; then

      if [ ! -w "$full_destination_path" ]; then

        echo -e "\033[31mError\033[0m: Destination file is locked (read-only) and cannot be overwritten."

        exit 1

      fi

      echo -e "\033[36mInfo\033[0m: Merging folders..."

      cp -Rn "$full_source_path/." "$full_destination_path"  # 合并文件夹内容（不覆盖已存在文件）

      echo -e "\033[36mInfo\033[0m: Folders merged successfully."

    else

    # sudo -u $USER

      cp -Rn "$full_source_path" "$full_destination_path"     # 复制整个文件夹

      echo -e "\033[36mInfo\033[0m: Folder copied to $full_destination_path successfully."

    fi

  else

    if [ -e "$full_destination_path" ]; then

      if [ ! -w "$full_destination_path" ]; then

        echo -e "\033[31mError\033[0m: Destination file is locked (read-only) and cannot be overwritten."

        exit 1

      fi

    fi

    # 检查目标文件夹是否为只读

    if [ -w "$(dirname "$full_destination_path")" ]; then

      cp "$full_source_path" "$full_destination_path"         # 复制文件

      echo -e "\033[36mInfo\033[0m: File copied to $full_destination_path successfully."

    else

      echo -e "\033[31mError\033[0m: Destination folder is locked (read-only) and cannot be written to."

      exit 1

    fi

  fi


elif [ "$option" == "delete" ]; then

  if [ -z "$relative_d_path" ]; then

    full_path="$user_destination/$source_path"

  else

    full_path="$user_destination/$relative_d_path/$source_path"

  fi

   echo full_path $full_path



  if [ ! -e "$full_path" ]; then

    echo -e "\033[31mError\033[0m: File or path does not exist."

    exit 1

  fi

  # 只读文件判定

  if [ -d "$full_path" ]; then

    # 使用find命令查找只读文件

    readonly_files=$(find "$full_path" -type f ! -perm /u+w)



    if [ -n "$readonly_files" ]; then

      echo -e "\033[36mInfo\033[0m: $full_path have readonly files："

      echo "$readonly_files"

      echo -e "\033[31mError\033[0m: Delete $full_path failed"

      exit 1

    fi

  else

    if [ ! -w "$full_path" ]; then

      echo -e "\033[36mInfo\033[0m: $full_path is readonly file"

      echo -e "\033[31mError\033[0m: Delete $full_path failed"

      exit 1

    fi

  fi

    rm -r "$full_path"

    echo -e "\033[36mInfo\033[0m: Path deleted from $full_path successfully."


elif [ "$option" == "lock" ]; then

  if [ -z "$relative_d_path" ]; then

    full_path="$user_destination/$source_path"

  else

    full_path="$user_destination/$relative_d_path/$source_path"

  fi


#   echo full_path $full_path



  if [ ! -e "$full_path" ]; then

    echo -e "\033[31mError\033[0m: File or path '$full_path' does not exist."

    exit 1

  fi

  if [ -w "$full_path" ]; then

    if [ -d "$full_path" ]; then

      # 递归设置目录及其子目录为只读权限

      find "$full_path" -type f -exec chmod 444 {} +

      find "$full_path" -type d -exec chmod 555 {} +



      echo -e "\033[36mInfo\033[0m: Path '$full_path' now is read-only"

    else

      chmod 444 "$full_path"

      echo -e "\033[36mInfo\033[0m: File '$full_path' now is read-only"

    fi

  else

    echo -e "\033[36mInfo\033[0m: Path is already locked (read-only)."

    exit 1

  fi

else

  echo -e "Invalid option: $option"

  exit 1

fi

'''

不足的思考

这个脚本在实际运用中很难将testdata目录锁定，即用户只能通过脚本方式更改，这是我在测试中没有解决的问题，另外这其实并不能非常好的管理测试目录，只能说是一个临时的解决方案。

对于巨量的测试源数据，目前并没有发现好的方法，如何高效的管理这个庞大的复杂文件系统，是后面需要考虑的事情
